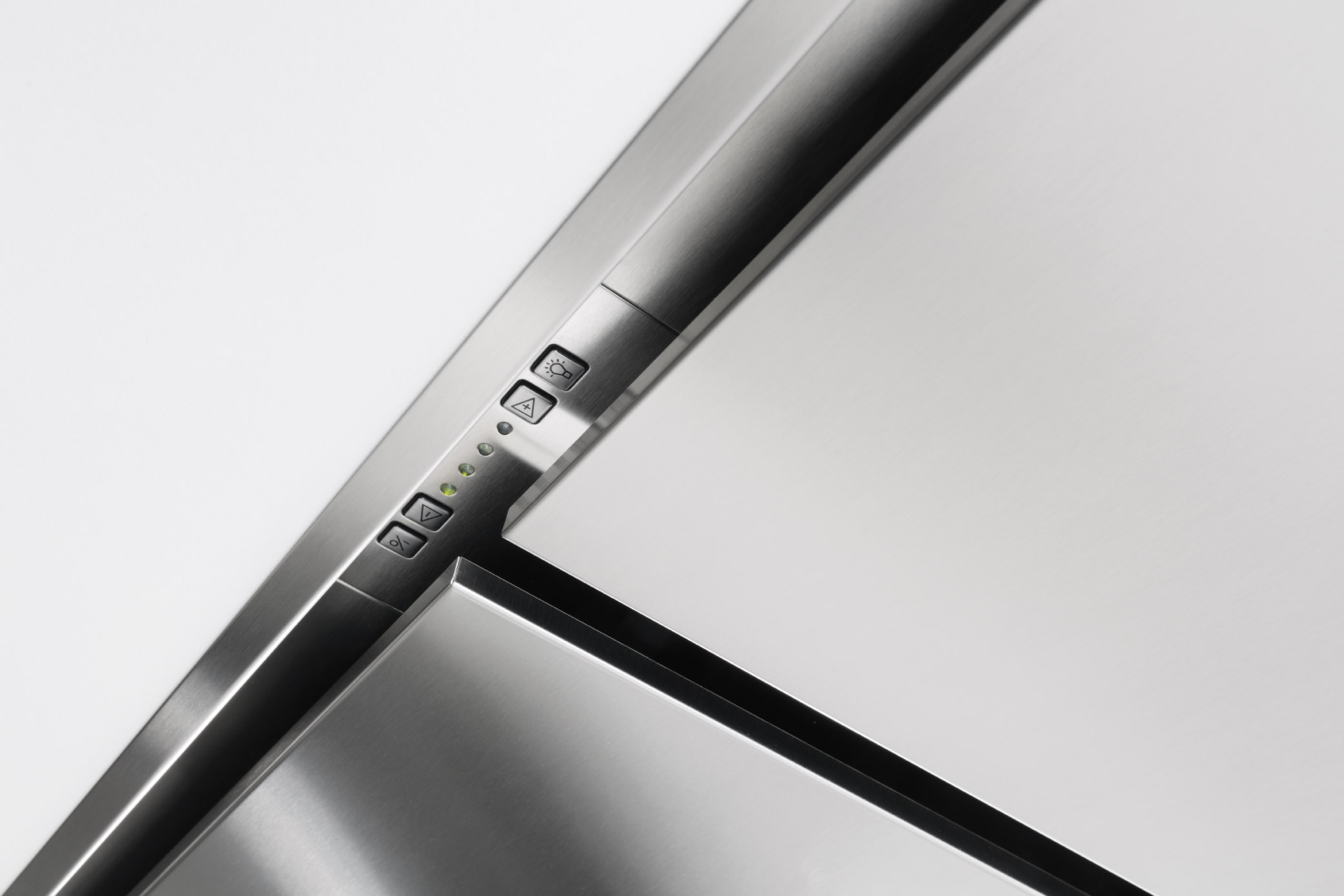

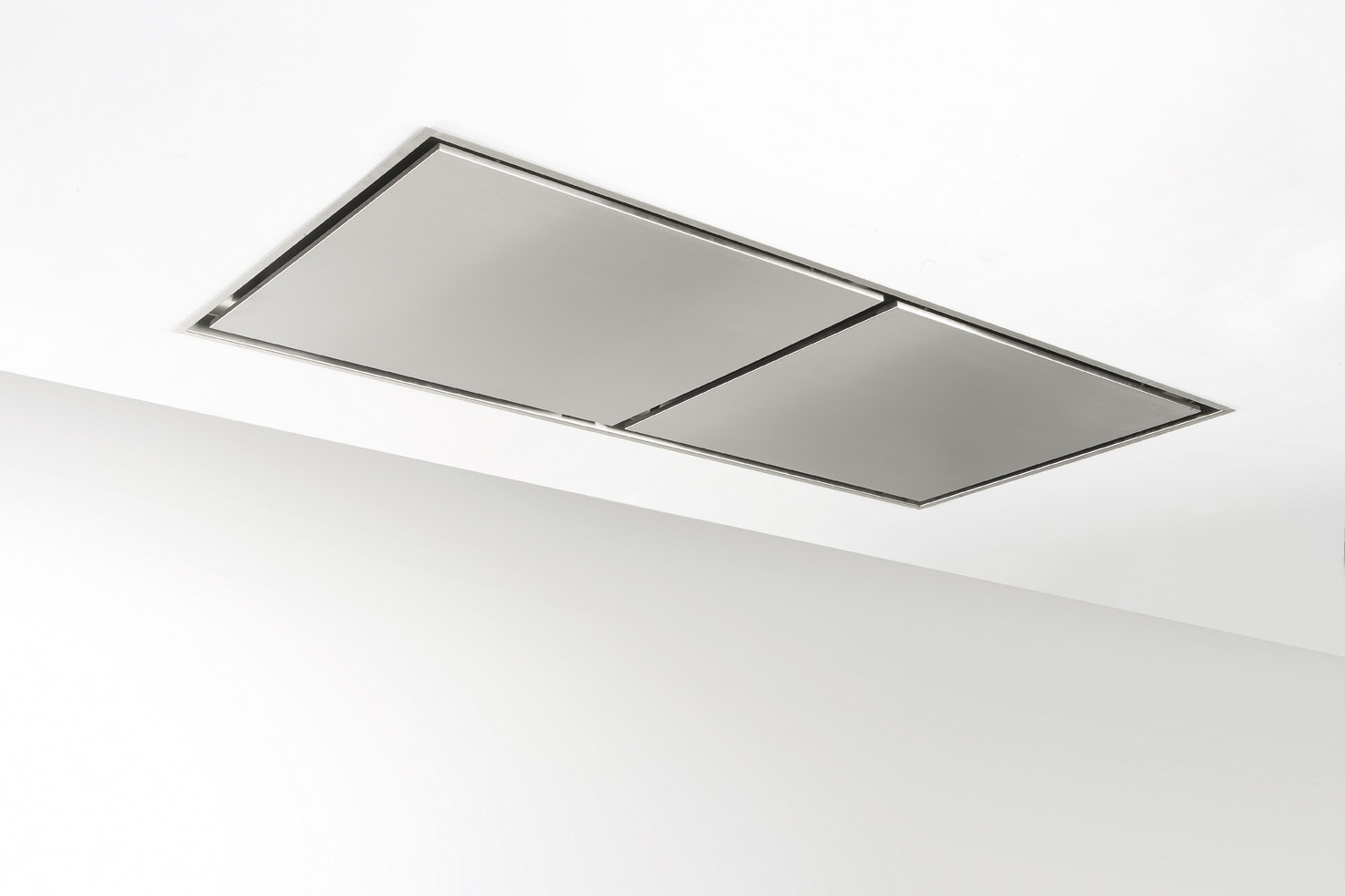

Ceiling unit Novy Maxi Pureline 855

Type number: 855

The ceiling unit for when you need true power

Novy Maxi Pureline 150 cm (without motor)Stainless steel

  • Extremely powerful
  • perfect for above an extra large cooking surface
  • industrial look
  • This model must be connected to 2 cubicl motors, wall mounted motors or flat roof motors.
afstandsbediening intouch inbouwhoogte_1m60 randafzuiging click_fix directe afvoer

Optional

recirculatie

£ 2,534 including VAT


Specifications

Energy label

Lighting Efficiency class (LEhood)
Not applicable

Functions and features

Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Without
Sound absorber
Without
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30

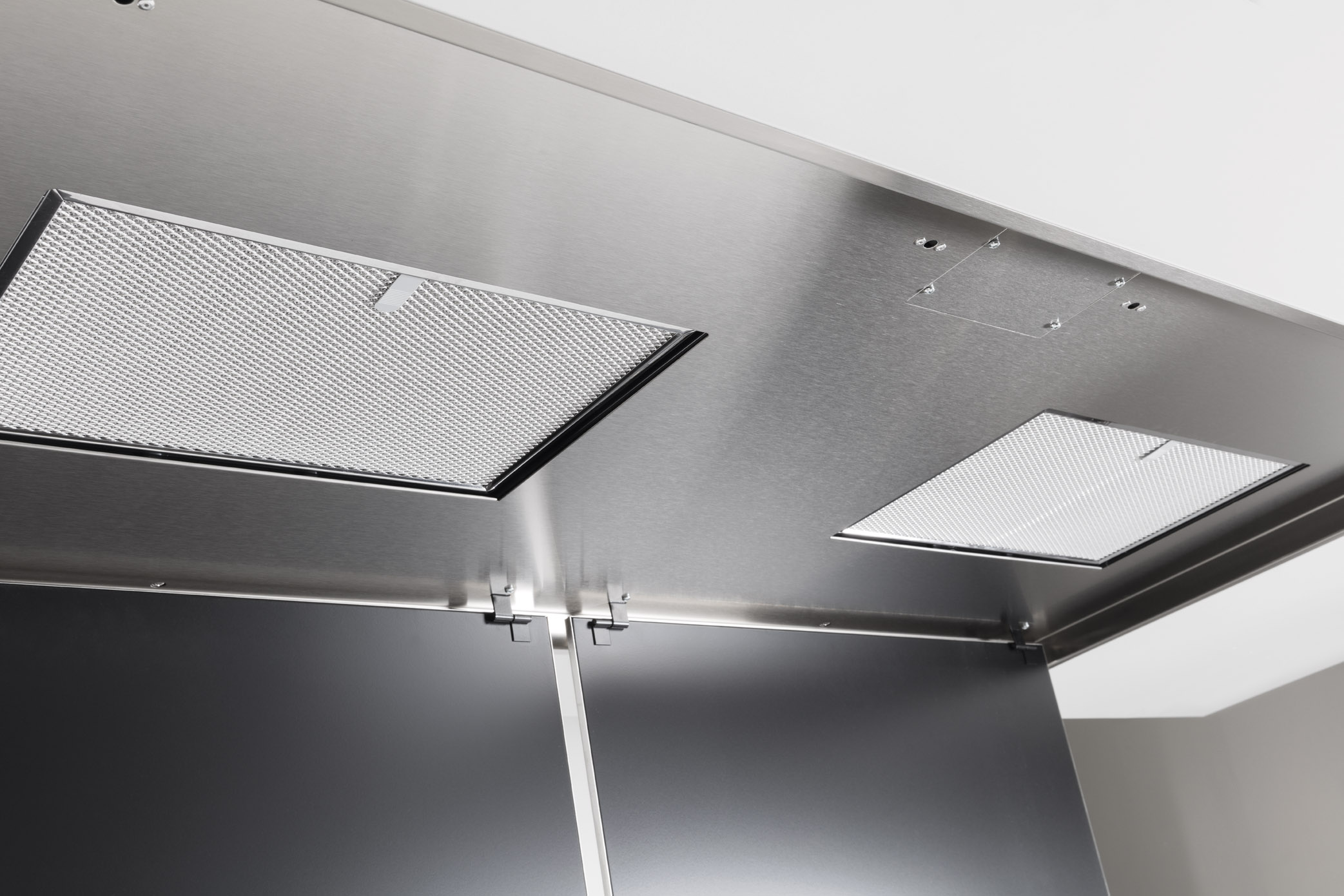

Number of grease filters
2
Grease filter
7400020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Novy Connect
Not applicable

Lighting

Functional lighting type
Not Applicable
Ambient lighting type
Not Applicable
Functional light dimmable
No
Soft-ON/OFF
No
Color functional light (K)
Not Applicable
Color ambient light (K)
Not Applicable
External light connector
220-230V / max 300W / Not Dimmable

Dimensions

Product dimensions (WxDxH) (mm)
1460 x 670 x 90
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
14
Dimensions cut-out opening (WxD) (mm)
1438 x 648
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
2x150
Position exhaust
Top

Airflow and noise level

Technical specifications

Maximum power (W)
0
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.29
Net weight (kg)
33
