Venting hobs Novy Panorama Pro 42110

Name: Venting hobs Novy Panorama Pro 42110
Brand: Novy
Price: 5089 EUR
Availability: InStock

Type number: 42110

Enlarge

See other versions of this product

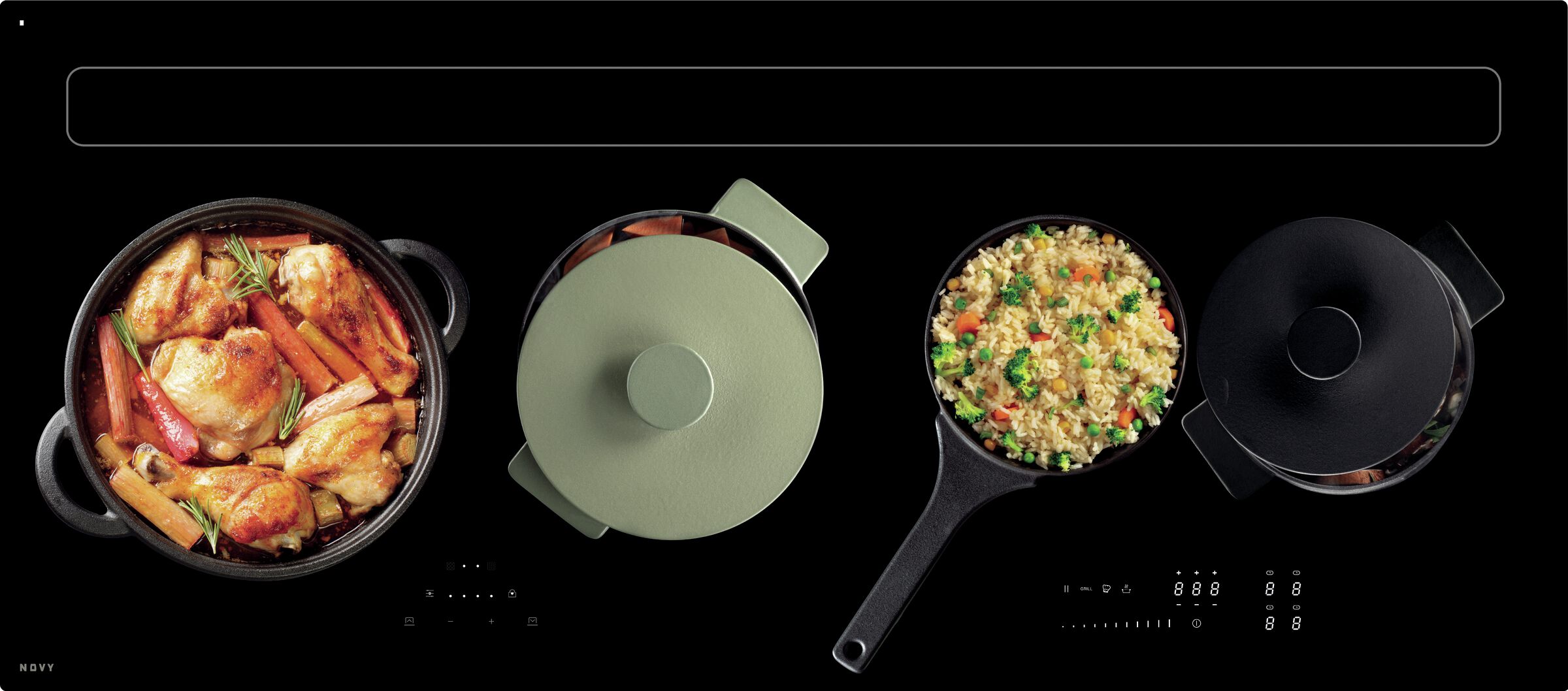

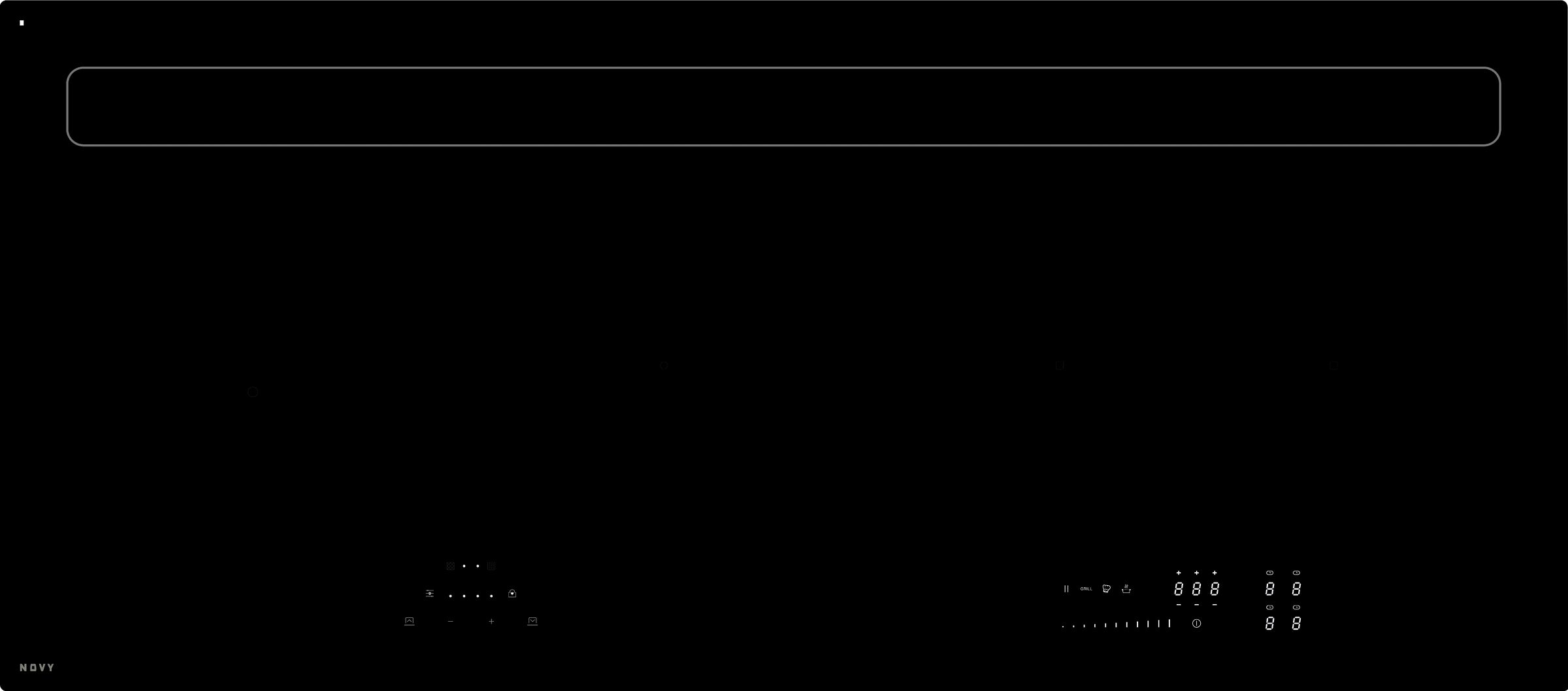

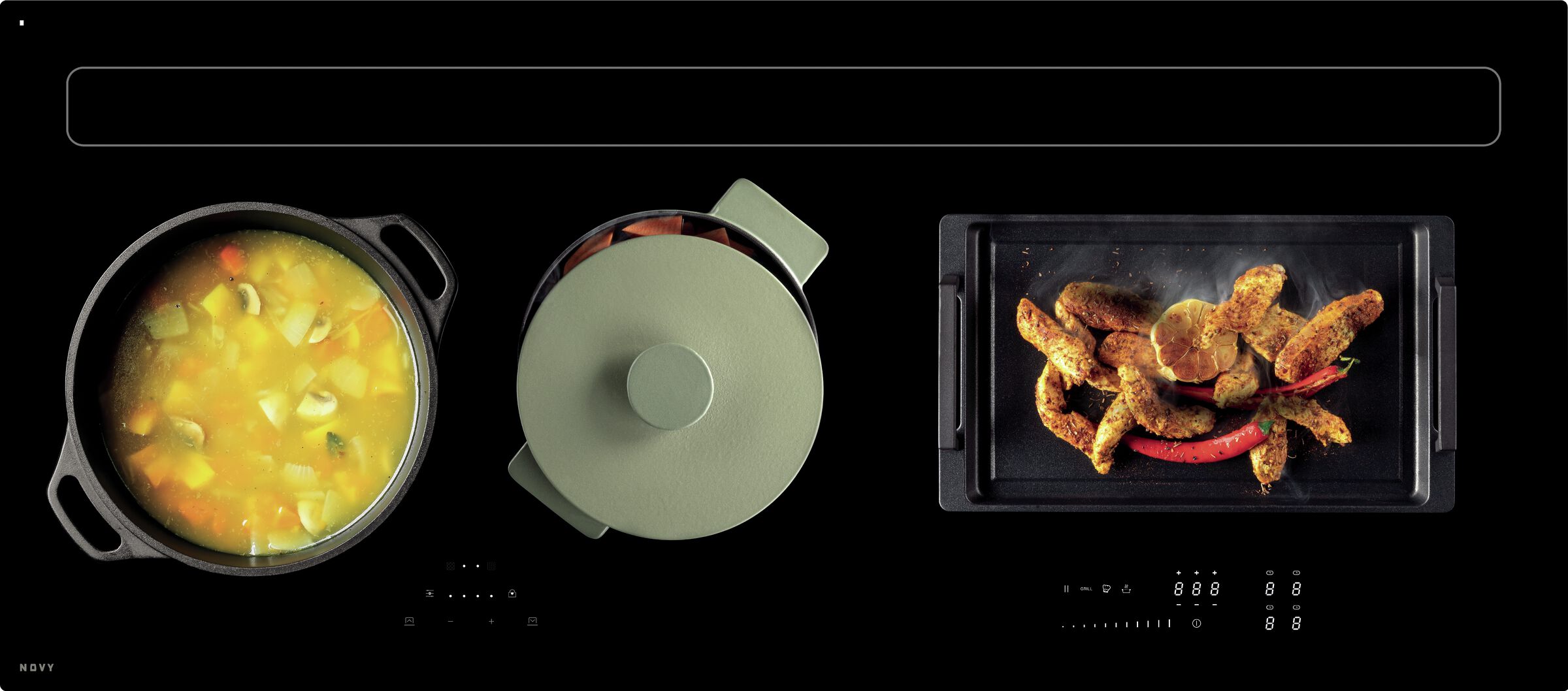

Novy Panorama Pro 120 cmBlack

Direct extraction at source, thanks to the adjustable height: 10 cm, 20 cm, 30 cm
4 cooking zones + practical functions
extra large cooking surface of 120cm
preset auto-function
semi-transparent extraction tower disappears invisibly into the hob
discrete and elegant design
easy to maintain
surface and flush installation possible

£ 5,089 including VAT

Show dealers

Specifications

Cooking zones

Number of cooking zones

4 zones

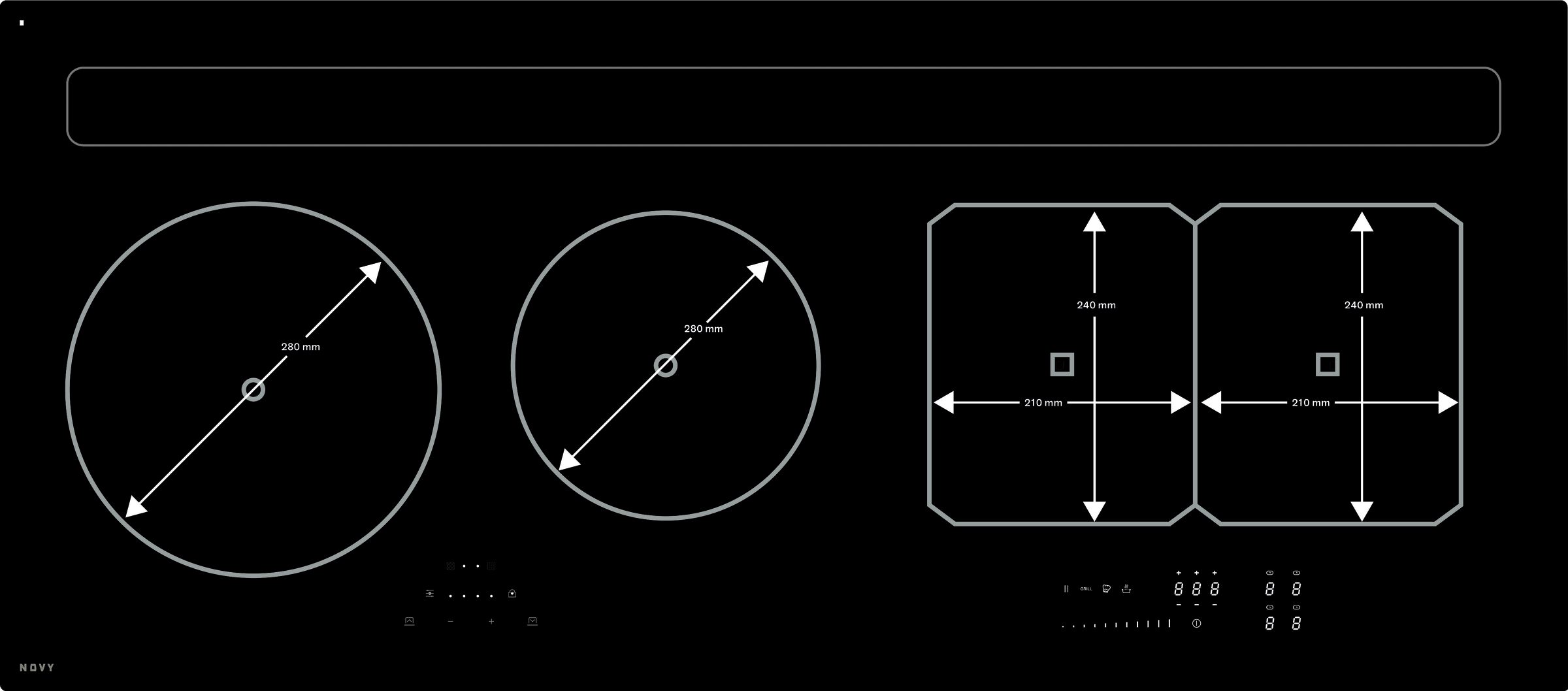

Cooking zone specifications

Zone	Zone dimension (mm)	Zone power (W)	Location of heating element
1	280	2300/3700	Left
2	230	2300/3700	Center left
3	200x240	2100/3700	Center right
4	200x240	2100/3700	Right

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

65,4

Lighting Efficiency class (LEhood)

Not applicable

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Motor

Integrated

Number of motors

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Not applicable

Auto stop

Yes

Delayed switch off

Yes

Delayed switch off (minutes)

30/10

Tower height (cm)

10, 20, 30

Number of grease filters

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Diameter duct (mm)

222x89

Functions and features hobs

Flexzone activation

Semi-automatic

Flexzone

Grill function

Yes

Chef function

Pot move function

Automatic pan recognition

Yes

Keep warm function (°C)

70°C

Residual heat indication

Yes

Childproof lock

Yes

Pause function

Yes

Safety time-switch-off

Yes

Timers

Minute minder / Timer per Zone / Automatic cooking

Lighting

Dimensions

Product dimensions (WxDxH) (mm)

1100 x 165 x 760

Diameter outlet (mm)

222x89

Position exhaust

Under

Airflow and noise level

Free airflow (m³/h)

1530

Airflow duct out max powerspeed (m³/h) (Qboost)

1009

Sound power duct out at max powerspeed (dB(A)) (LWAboost)

Sound power duct out at minimum speed (dB(A)) (LWAmin)

Technical specifications

Maximum power (W)

450+7400

Voltage appliance (V)

230/400

Frequency (Hz)

Length power supply cable (m)

1,2

Power consumption in off-mode (Po) (W)

Power consumption in stand-by-mode (Ps) (W)

0,8

Net weight (kg)

78,2

See all specifications

Manuals & downloads

Product File Technical File Exploded View User Manual Installation Manual Conformity Declaration Energy label Technical drawing Safety Instructions
