Venting hobs Novy Up Power 40004

Type number: 40004

Venting hobs Novy Up Power 40004 Enlarge
40004 Venting hobs Novy Up Power 87 cm
40004 Venting hobs Novy Up Power 87 cm
40004 Venting hobs Novy Up Power 87 cm
40004 Venting hobs Novy Up Power 87 cm
40004 Venting hobs Novy Up Power 87 cm
40004 Venting hobs Novy Up Power 87 cm
See other versions of this product

Novy Up Power 87 cmBlack

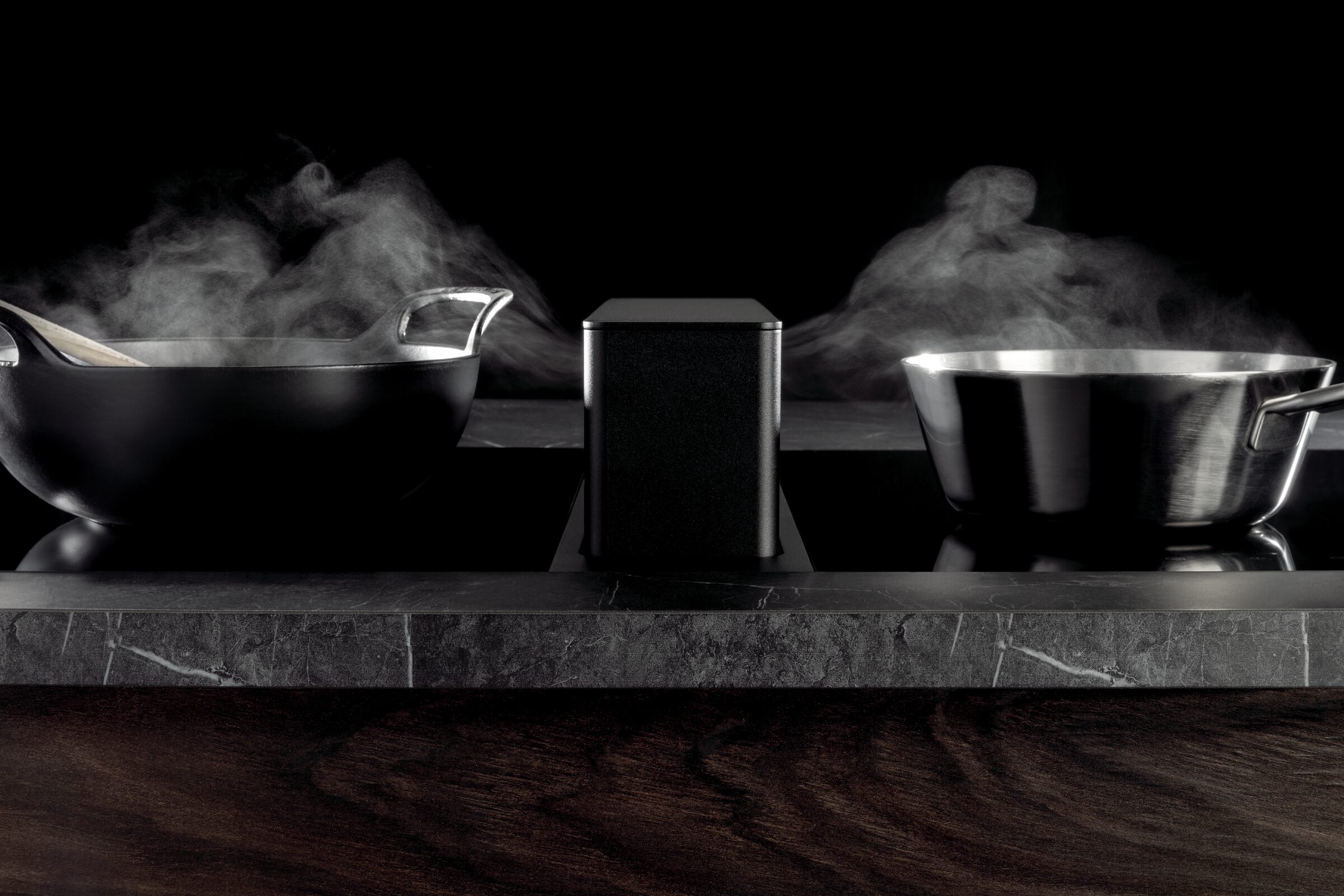

  • Direct extraction where the vapour is generated thanks to the central extraction tower
  • Manual operation of the extraction tower

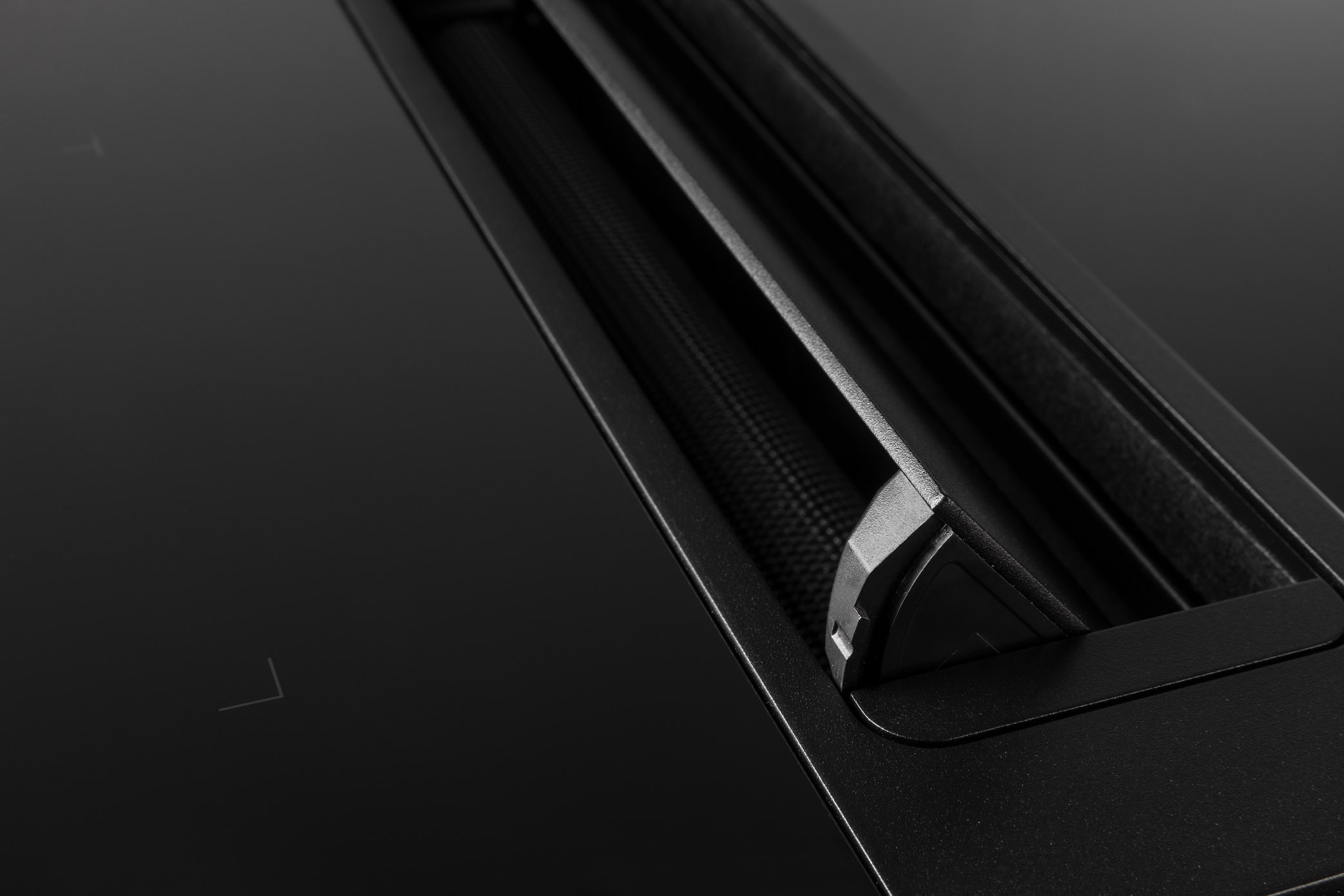

  • Adjustable flap with adjustable height for directional extraction
  • Extraction tower disappears in between the domino hobs
  • Choice of various cooking setups
  • Surface-mounting and flush-mounting possible

£ 3,844 including VAT

Show dealers

Specifications

Cooking zones

Number of cooking zones
4 zones
Cooking zone specifications
ZoneZone dimension (mm)Zone power (W)Location of heating element
GUI_EDIT_COPY_OF_[ ]1240x2001600/1850Front left
GUI_EDIT_COPY_OF_[ ]2240x2002100/3000Rear left
GUI_EDIT_COPY_OF_[ ]3240x2001600/1850Front right
GUI_EDIT_COPY_OF_[ ]4240x2002100/3000Rear right

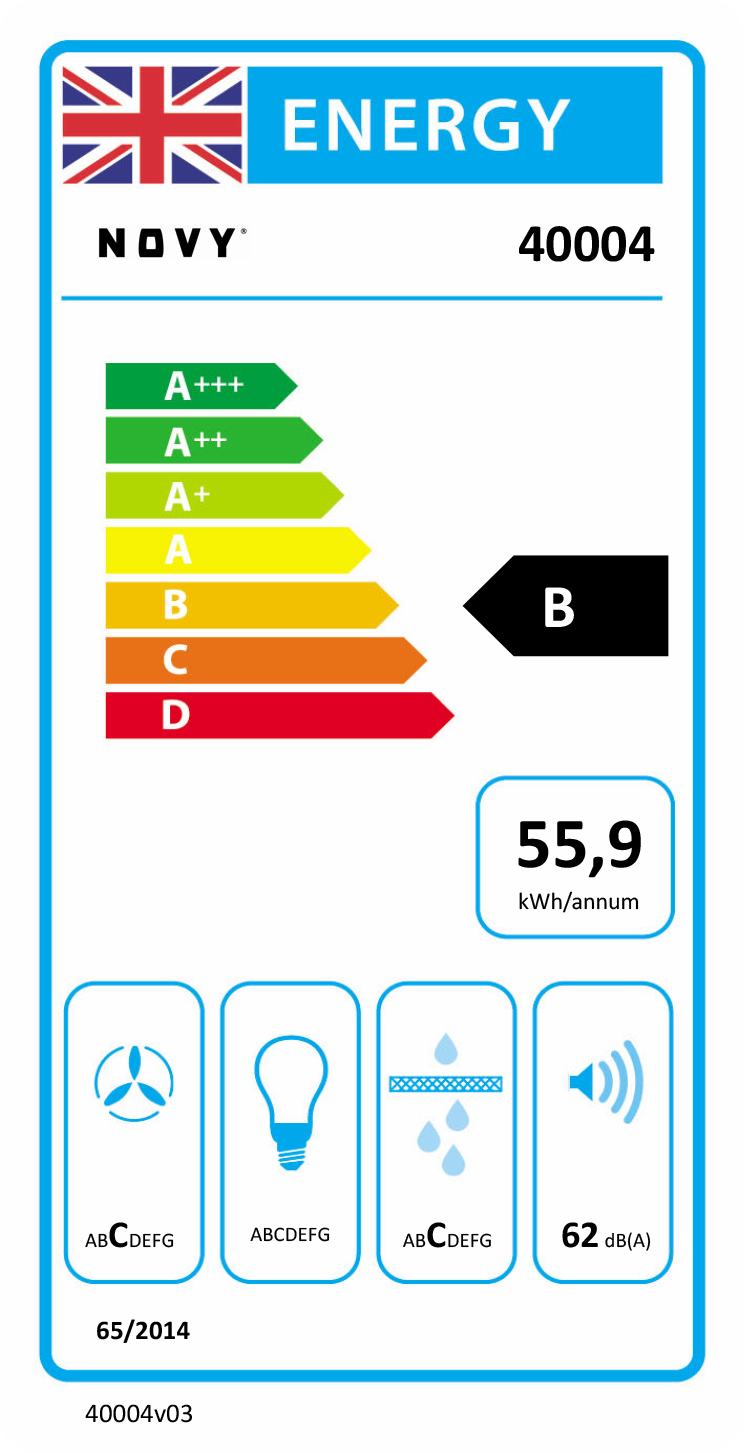

Energy label

Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
55,9
Lighting Efficiency class (LEhood)
Not applicable
Fluid Dynamic Efficiency class (FDEhood)
C
Grease Filtering Efficiency class (GFEhood)
C

Functions and features

Motor
Integrated
Number of motors
1
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Not applicable
Auto stop
Yes
Delayed switch off
Yes
Tower height (cm)
0, 10
Number of grease filters
1
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Diameter duct (mm)
222x89

Functions and features hobs

Flexzone activation
Manual
Flexzone
2
Grill function
No
Chef function
No
Pot move function
No
Automatic pan recognition
No
Residual heat indication
Yes
Childproof lock
Yes
Pause function
No
Safety time-switch-off
Yes
Timers
Minute minder / Timer per Zone

Lighting

Dimensions

Diameter outlet (mm)
222x89
Position exhaust
Left

Airflow and noise level

Free airflow (m³/h)
750
Airflow duct out speed 1 (m³/h)
375
Airflow duct out max powerspeed (m³/h) (Qboost)
537
Max pressure duct out at minimum speed (Pa)
188
Sound power duct out speed 1 (dB(A))
55
Sound power duct out at max powerspeed (dB(A)) (LWAboost)
64
Sound power duct out at minimum speed (dB(A)) (LWAmin)
55

Technical specifications

Maximum power (W)
7400
Voltage appliance (V)
230
Frequency (Hz)
50
Power consumption in stand-by-mode (Ps) (W)
0,30
Net weight (kg)
30
See all specifications

Manuals & downloads

Product File Technical File Exploded View User Manual Installation Manual Conformity Declaration Energy label Technical drawing Safety Instructions

Associated accessories

7921400 Plinth exhaust box with monoblock filter
Price £ 459 including VAT

7922400 Plinth recirculation box with monoblock, H 98 mm
Price £ 459 including VAT

7923400 Plinth exhaust box with monoblock filter
Price £ 459 including VAT

7910055 Monoblock replacement filter
Price £ 159 including VAT

906401
Price £ 49 including VAT

906402 Connector
Price £ 24 including VAT

906403 Horizontal bend 90°
Price £ 59 including VAT

906404 Vertical bend 90°
Price £ 49 including VAT

906405 Angle adaptor round to rectangular
Price £ 59 including VAT

906406 Transfer rectangular to round
Price £ 49 including VAT

906407 Wall conduct with non-return valve
Price £ 264 including VAT

906418 Bend 15° for flat duct
Price £ 19 including VAT
