Canopy Mini Pureline 816

Name: Canopy Mini Pureline 816
Brand: Novy

Type number: 816

Comparer

See other versions of this product

Timeless elegance

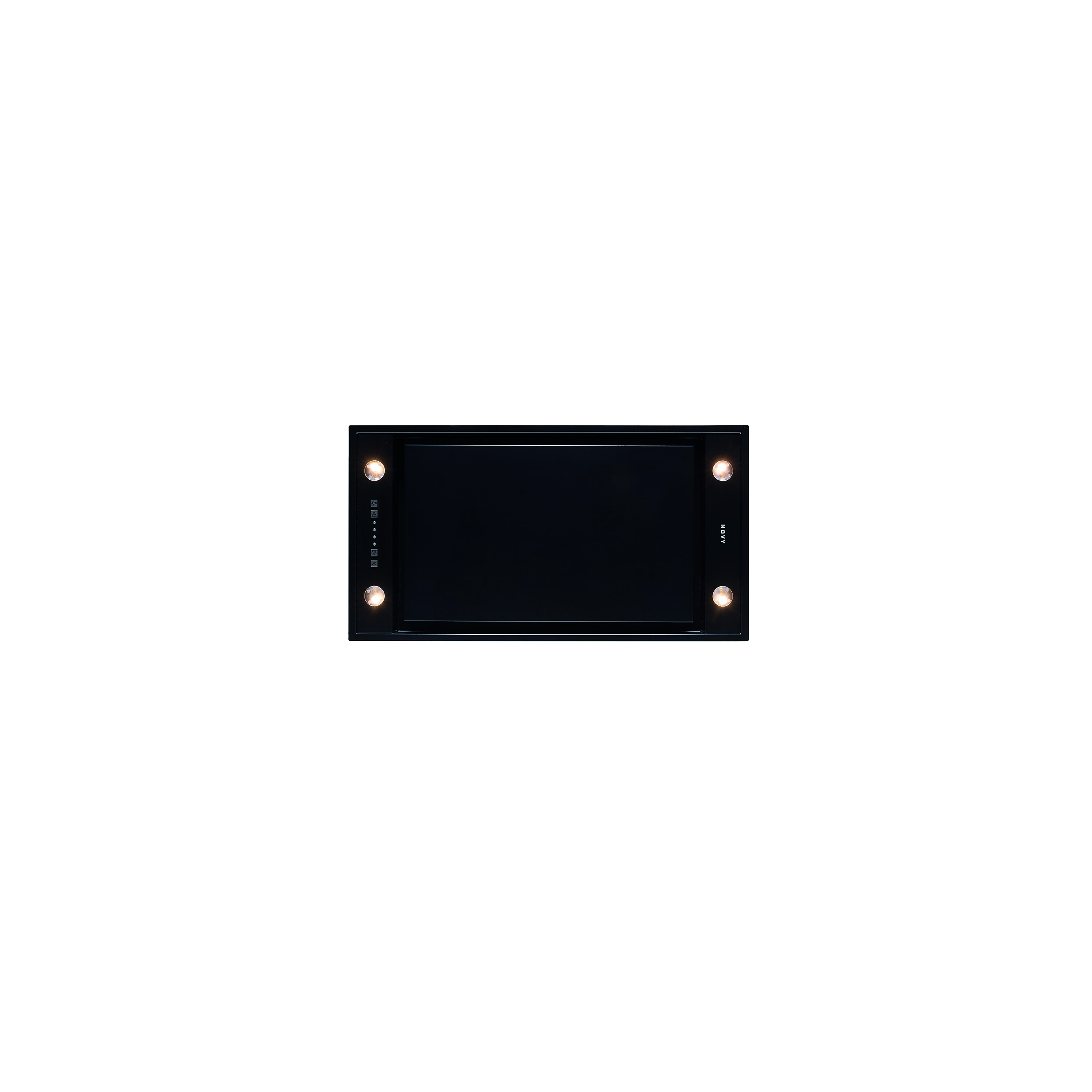

Mini Pureline 60 cm Mineral Black

Mineral Black: stylish design effect, low-maintenance and less sensitive to fingerprints
Integrated in a decorative chimney or alcove
Flexible installation of the Cubic motor for more placement options
Integrated dimmable LED lighting
LED lighting warm white (2700K) adjustable to neutral white (4000K)

Optional

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

34,9

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Push buttons / Remote control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Standard

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

609014

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Novy Connect

Not applicable

Lighting

Functional lighting type

LED

Ambient lighting type

Not Applicable

Functional light dimmable

Yes

Soft-ON/OFF

Yes

Number of functional lights

Total energy consumption functional light (W)

Color functional light (K)

2700/4000

Color ambient light (K)

Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)

560 x 301 x 330

Width flange (mm)

Dimensions cut-out opening (WxD) (mm)

545 x 286

Advised mounting height induction hobs (Hmin-Hmax) (mm)

650 - 750

Min dimensions cabinet (WxDxH) (mm)

x 600 x

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Diameter outlet (mm)

150

Position exhaust

Right / Top / Left / Back / Front

Airflow and noise level

Airflow duct out speed 1 (m³/h)

205

Airflow duct out speed 2 (m³/h)

333

Airflow duct out speed 3 (m³/h)

399

Airflow duct out max powerspeed (m³/h) (Qboost)

534

Sound pressure duct out speed 1 (dB(A))

Sound pressure duct out speed 2 (dB(A))

Sound pressure duct out speed 3 (dB(A))

Sound pressure duct out at max powerspeed (dB(A))

Technical specifications

Maximum power (W)

118

Voltage appliance (V)

220-240

Frequency (Hz)

50-60

Length power supply cable (m)

1,3

Power consumption in stand-by-mode (Ps) (W)

0.25

Net weight (kg)

9,8

See all specifications

Manuals & downloads

Energy label Product File Technical File Exploded View User Manual Installation Manual Conformity Declaration CAT Technical drawing Safety Instructions
