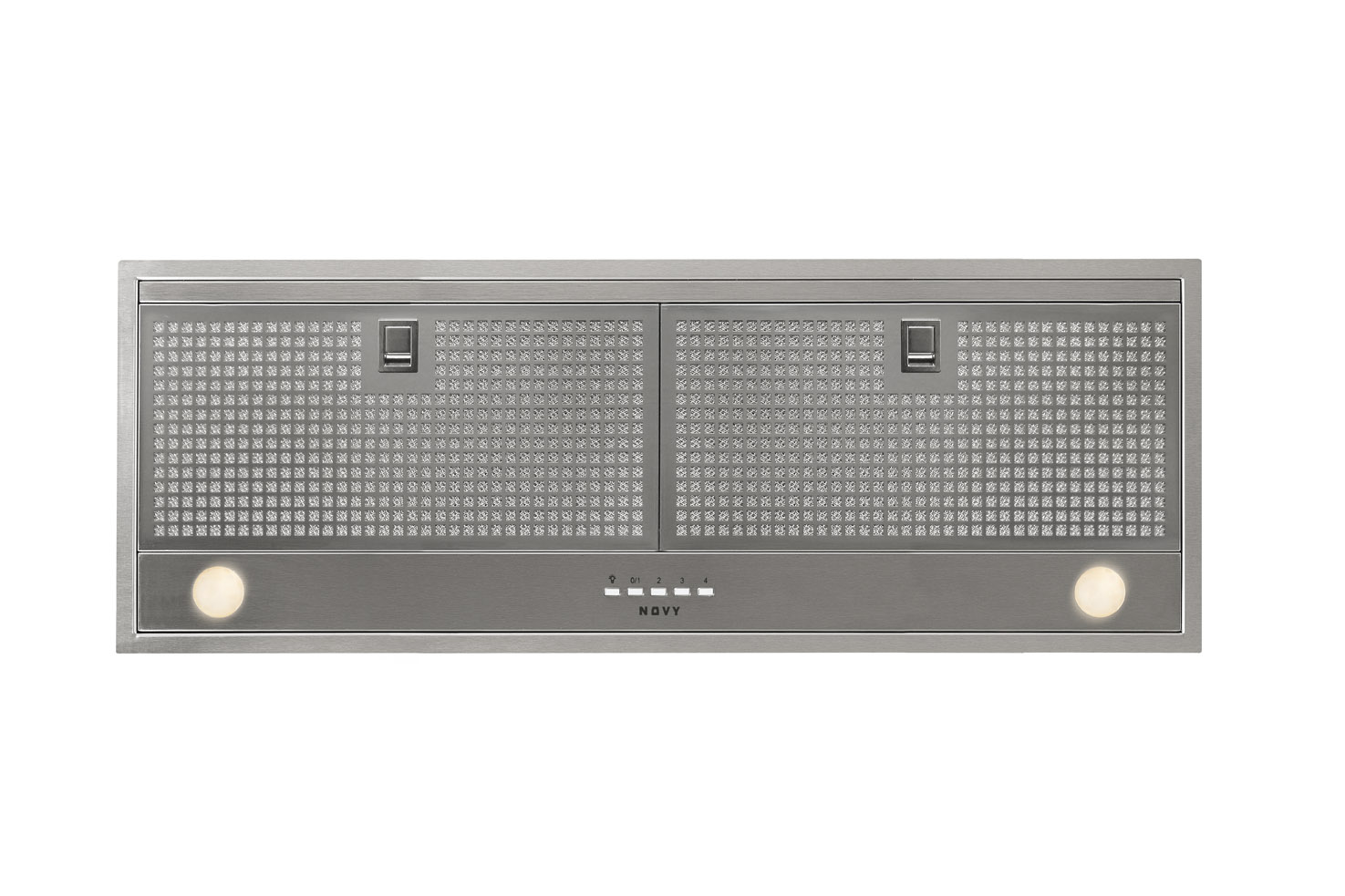

Canopy Novy Essence 829
Type number: 829
/Cooker hoods/Canopy/829-Canopy Basic-stainless steel-90cm-led-packshot.jpg?rmode=crop&width=538&height=538&format=webp)
/Cooker hoods/Canopy/829-Canopy Basic-stainless steel-90cm-led-packshot.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Canopy/829-Canopy Basic-stainless steel-90cm-led-detail.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Canopy/829-Canopy Basic-stainless steel-90cm-detail_V2.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Canopy/829-Canopy Basic-stainless steel-90cm-packshot1-led.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
Essence in all its simplicity
Novy Essence 90 cm Stainless steel
- Built-in units in stainless steel for a decorative chimney or canopy
- convenience and easy control
- sleek design filter for the optimum extraction of cooking vapours
Optional
Specifications
Energy label
Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
61,9
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
C
Grease Filtering Efficiency class (GFEhood)
B
Functions and features
Control method
Push buttons
Number of speeds
4
Motor
Integrated
Sound absorber
Without
Recirculation
Optional
InTouch function
Not applicable
Auto stop
No
Number of grease filters
2
Grease filter
829020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Lighting
Ambient lighting type
Not Applicable
Functional light dimmable
No
Soft-ON/OFF
No
Number of functional lights
2
Total energy consumption functional light (W)
7
Color ambient light (K)
Not Applicable
Dimensions
Product dimensions (WxDxH) (mm)
846 x 296 x 279
Width flange (mm)
12
Dimensions cut-out opening (WxD) (mm)
825 x 275
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Min dimensions cabinet (WxDxH) (mm)
x 600 x
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top
Airflow and noise level
Airflow duct out speed 1 (m³/h)
199
Airflow duct out speed 2 (m³/h)
299
Airflow duct out speed 3 (m³/h)
399
Sound pressure duct out speed 1 (dB(A))
23
Sound pressure duct out speed 2 (dB(A))
28
Sound pressure duct out speed 3 (dB(A))
40
Technical specifications
Maximum power (W)
168
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1
Power consumption in stand-by-mode (Ps) (W)
0.35
Net weight (kg)
9,5
Associated accessories

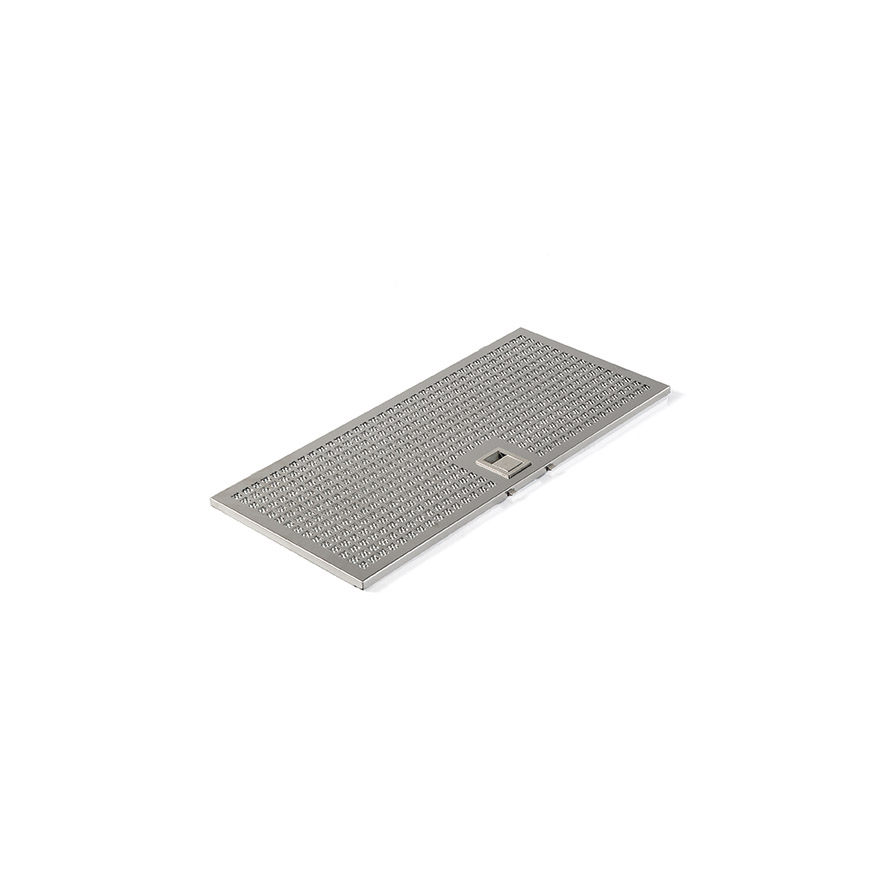

829020 Grease Filter
906432 Mechanical non-return valve - Ø 150mm
906432 Mechanical non-return valve - Ø 150mm
