Ceiling unit Novy Pureline Compact 6812

Type number: 6812

Ceiling unit Novy Pureline Compact 6812 Comparer
6812 Ceiling unit Novy Pureline Compact
6812 Ceiling unit Novy Pureline Compact
6812 Ceiling unit Novy Pureline Compact
6812 Ceiling unit Novy Pureline Compact
See other versions of this product

Novy Pureline Compact 90 cm Mineral Black

  • Flexible installation thanks to models with a compact motor, for a built-in height of only 19,5 cm
  • Mineral Black: stylish design effect, low-maintenance and less sensitive to fingerprints
  • maximum efficiency but extremely quiet
  • LED lighting warm white (2700K) adjustable to neutral white (4000K)
  • integrated dimmable LED lighting
randafzuiging ecosmart directe afvoer afstandsbediening intouch inbouwhoogte_1m60 click_fix

Optional

recirculatie

Specifications

Energy label

Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
62,7
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
B
Grease Filtering Efficiency class (GFEhood)
D

Functions and features

Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30
Number of grease filters
2
Grease filter
6830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Novy Connect
Not applicable

Lighting

Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
12
Color functional light (K)
2700/4000
Color ambient light (K)
Not Applicable
External light connector
Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)
868 x 508 x 195
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
15
Dimensions cut-out opening (WxD) (mm)
845 x 485
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
222x89
Position exhaust
Right / Left / Front / Back

Airflow and noise level

Airflow duct out speed 1 (m³/h)
244
Airflow duct out speed 2 (m³/h)
443
Airflow duct out speed 3 (m³/h)
581
Airflow duct out max powerspeed (m³/h) (Qboost)
650
Sound pressure duct out speed 1 (dB(A))
27
Sound pressure duct out speed 2 (dB(A))
40
Sound pressure duct out speed 3 (dB(A))
47
Sound pressure duct out at max powerspeed (dB(A))
51

Technical specifications

Maximum power (W)
171
Voltage appliance (V)
220-240
Frequency (Hz)
50-60
Length power supply cable (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
22
See all specifications

Manuals & downloads

Energy label Product File Technical File Exploded View User Manual Installation Manual Conformity Declaration CAT Technical drawing Safety Instructions

Associated accessories

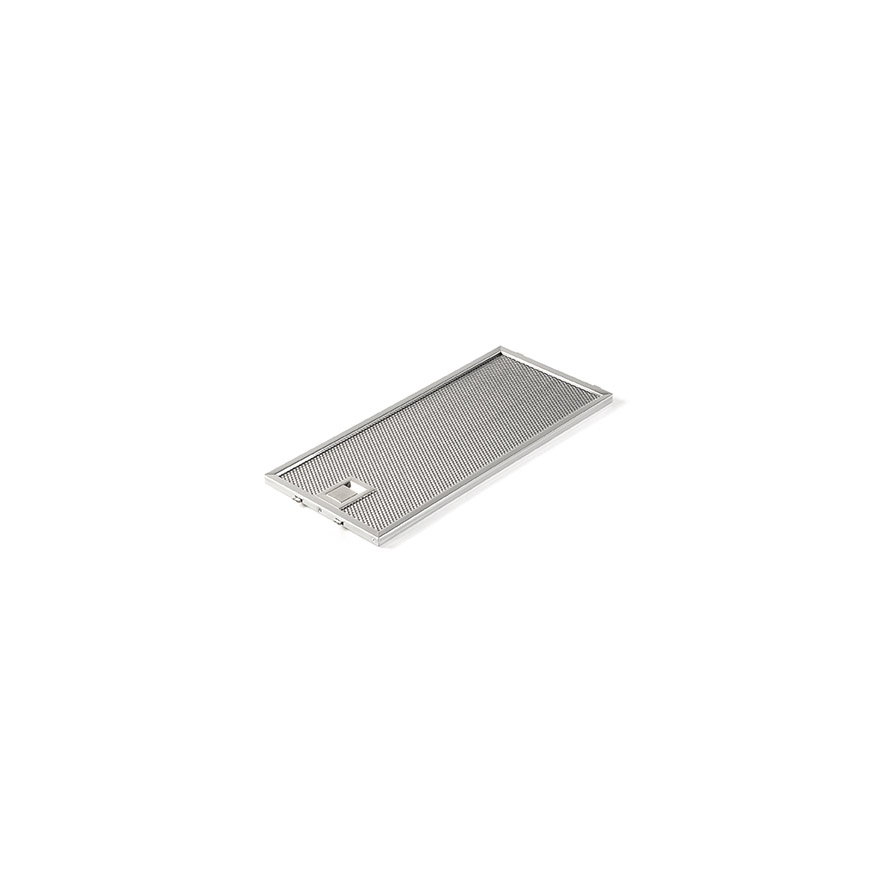

6830020 Grease Filter Novy Pureline
Price € 69

841400 Exhaust box with monoblock filter
Price € 484

843400 Exhaust box with monoblock filter
Price € 484

7931400 Exhaust box with monoblock filter
Price € 484

7933400 Recirculation box with monoblock filter
Price € 484
