Wall mounted Novy Vision 7833
Type number: 7833
/Cooker hoods/Wall Mounted/7833-Novy-Vision-packshot1.jpg?rmode=crop&width=538&height=538&format=webp)
/Cooker hoods/Wall Mounted/7833-Novy-Vision-packshot1.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Wall Mounted/7833-Vision-black-90cm-packshot_08.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Wall Mounted/7853-Vision-stainless steel-Black-75cm-detail_01.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Wall Mounted/7853-Vision-stainless steel-Black-75cm-detail_02.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Wall Mounted/7830-Novy-Vision-detail_04.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Wall Mounted/7833-Vision-black-90cm-ambient_08.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
Just that little bit more in terms of design

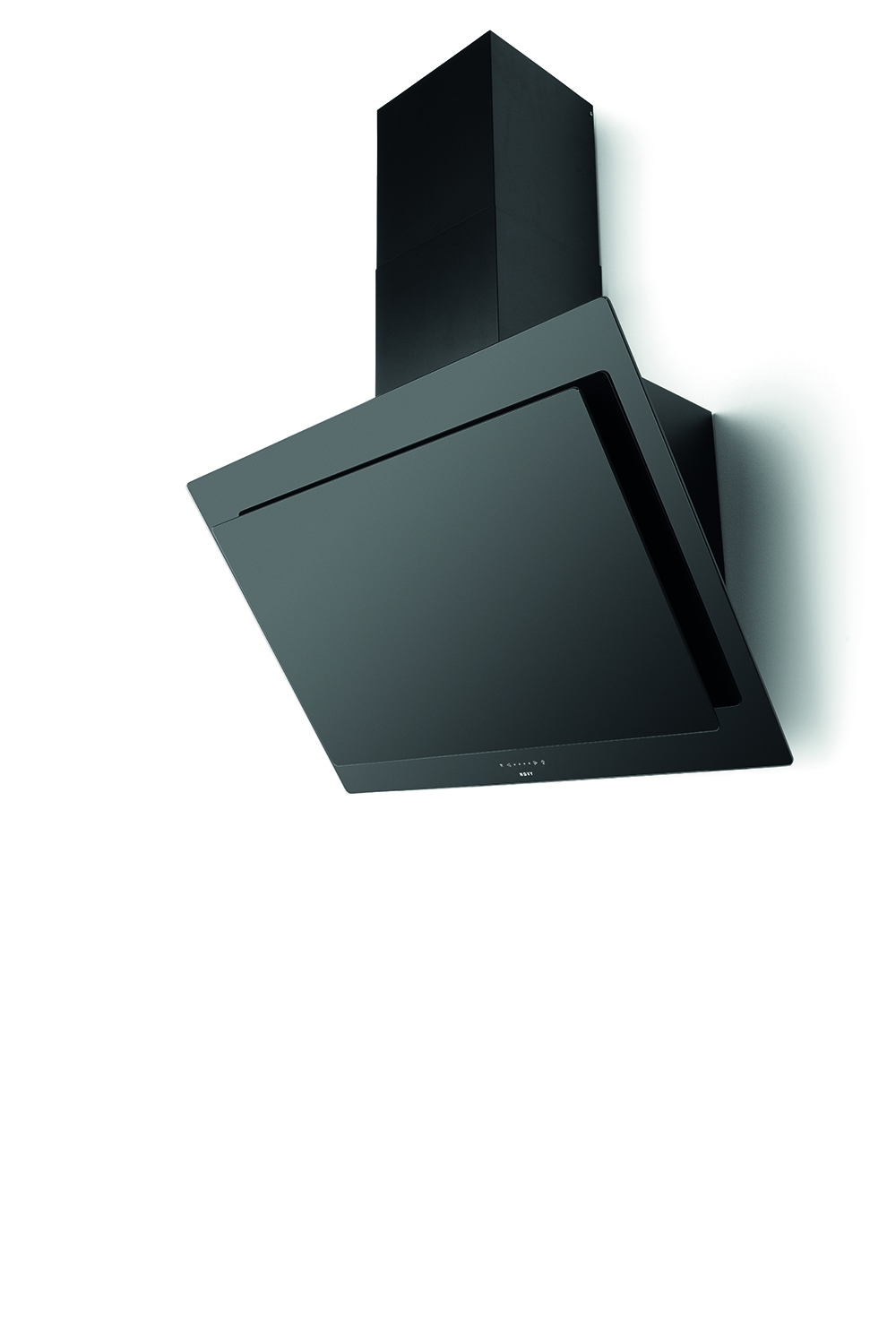

Novy Vision 90 cm Black
- modern, clean look
- black & black glass
- option to install without a chimney with an outlet at the back
- subtle LED lighting (2700K)
Optional
Specifications
Energy label
Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
45,5
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
C
Functions and features
Control method
Touch control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Not applicable
InTouch function
Optional
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
2
Grease filter
7830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
No
Lighting
Functional light dimmable
No
Soft-ON/OFF
No
Number of functional lights
2
Total energy consumption functional light (W)
4
Dimensions
Advised mounting height induction hobs (Hmin-Hmax) (mm)
500 - 750
Product dimensions exhaust (WxDxHmin-Hmax) (mm)
898 x 426 x 830 - 1100
Product dimensions recirculation (WxDxHmin-Hmax) (mm)
898 x 426 x -
Max height optional chimney exhaust (mm)
1390
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
500 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top / Back
Airflow and noise level
Airflow duct out speed 1 (m³/h)
245
Airflow duct out speed 2 (m³/h)
348
Airflow duct out speed 3 (m³/h)
500
Airflow duct out max powerspeed (m³/h) (Qboost)
780
Sound pressure duct out speed 1 (dB(A))
25
Sound pressure duct out speed 2 (dB(A))
32
Sound pressure duct out speed 3 (dB(A))
41
Sound pressure duct out at max powerspeed (dB(A))
51
Technical specifications
Maximum power (W)
305
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.37
Net weight (kg)
32
